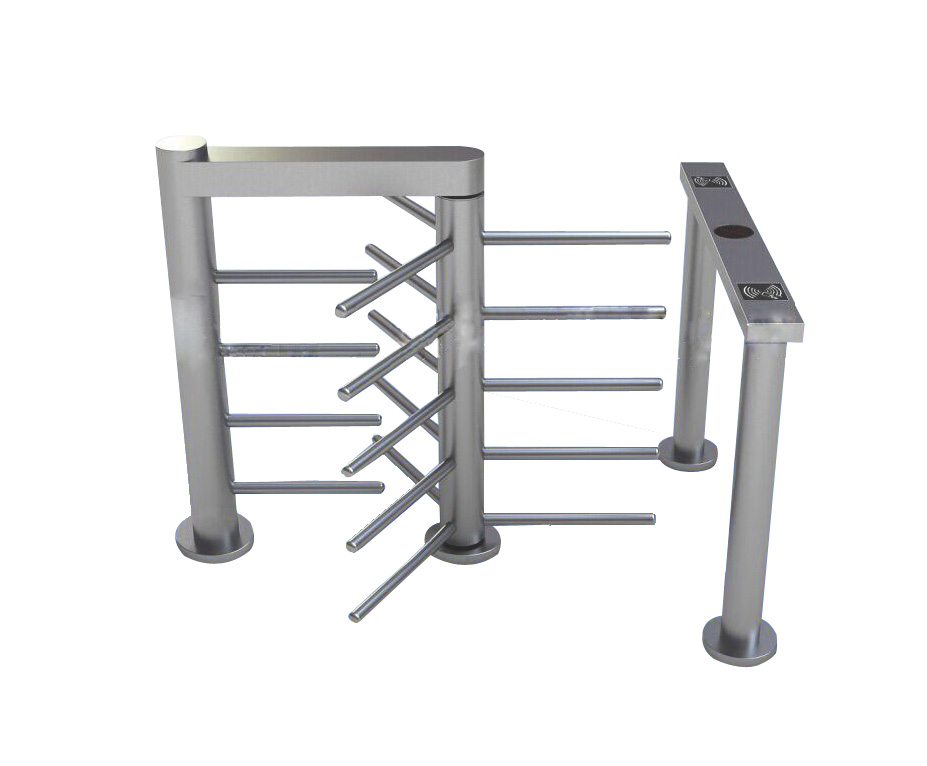

High Durability Security Turnstile 120°Rotating Rustproof For Railway Station

Shenzhen Delixin Co.,Ltd
Contact Now
    Buy cheap High Durability Security Turnstile 120°Rotating Rustproof For Railway Station from wholesalers

    Buy cheap High Durability Security Turnstile 120°Rotating Rustproof For Railway Station from wholesalers
    • Buy cheap High Durability Security Turnstile 120°Rotating Rustproof For Railway Station from wholesalers

    High Durability Security Turnstile 120°Rotating Rustproof For Railway Station

    Ask Lasest Price
    Brand Name : DLX
    Model Number : DLX-100
    Certification : CE
    Price : USD(1-7000)
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 300Sets/Month
    Delivery Time : 5-10days
    • Product Details
    • Company Profile

    High Durability Security Turnstile 120°Rotating Rustproof For Railway Station

    High Durability Security Turnstile 120°Rotating Rustproof For Railway Station


    Product Classification


    Model:DLX-1000


    1PowerAC220C±20V,50HZ;
    2Machine coreSemi Automatic
    3Operating Temperature-40℃-70℃
    4Relative Humidity≤95%, No Condensation
    5Passage Width≤600mm
    6Passing Speed40persons/min
    7Motorno motor ,Semiautomatic Mechanism, solenoid and electromagnet mechanism, with shock absorber
    8Input Connection+12V Level Signal or Pulse Wide>100ms DC12V pulse, Current>10Ma
    9Communication Connectionwithout RS485 Communication
    10MaterialStainless steel 304,thickness is no less than 1.5mm
    11Communication Distance<1200M
    12Running life5--8 Million(Continuous Opening and Closing Operation)
    13Protect levelIP54
    14Size1630*1450*2300mm ,Many size can be choice or custom made as demand
    15ColourStainless Steel Brushed / Powder Coating(Optional)
    16Operation PlaceSubway Station, Hoverport,Tourism Sports,Exhibition, Swimming Hall,Residence Area,Enterprise’s Entrance and Exit Attendance,Gateway Guard,Charge Management,Special Access Control


    Product Description :

    The full body is made of 304# stainless steel; consist of three bars, mechanism, electric circuit, electromagnetic, hydraulic damper, led lamp and so on. It is pedestrian access the upgrading product of tripod turnstile. With standard fire interface, arm can be free rotation by force for evacuation even power is not cut offwhen fire alarm triggered.

    Anti-passback, with hydraulic damper, low impact sound and high durability:


    Product introduction
    Structure: the entire product shape plate 304 stainless steel plate, stamping, rustproof, durable, the equipment is simple to use, no maintenance.
    ◇ external dimensions: 1630X1450X2300
    ◇ brake lever length: 600(mm)
    ◇ weight: 200KG
    ◇ brake lever steering: one-way two-way
    ◇ working environment: indoor and outdoor (preferably with awning)

    Features :

    1. High Security, anti-crawling, anti-climbing, no need guard for the gate.

    2. Free rotation by force when power off. Locked when power on.

    3. Arm locked until a valid signal is given.


    Applicable place:
    ◆ high security occasions: prisons, military places, etc.
    ◆ institutions of science and education: colleges and universities, research institutes, libraries, etc.
    ◆ commercial service places: supermarkets, shopping malls, hotels, clubs, Banks, etc.
    ◆ transportation station: bus station, railway station, subway station, airport, etc.
