Half Height ESD Turnstile Access Control Double Direction LCD Tester Display

1.1 iDS-610 – ESD Wrist Strap and Shoe Checker

1.2. iDS-700 – EDS DataLogging Software

1.3. iDS-611x – Compact Economical Turnstile

2. ESD Shoe and Wrist Strap Tester iDS-610

2.1. Small and compact size 130mm X 160mm X 60mm

2.2 Comes with 2x20 LCD

2.3. Simultaneous Dual-foot and Wrist Strap testing

2.4. Digital Setting and Calibration

2.5. Easy Verification

2.6. Future Expansion for DataLogging and Other Control

2.7. RS-232 Output

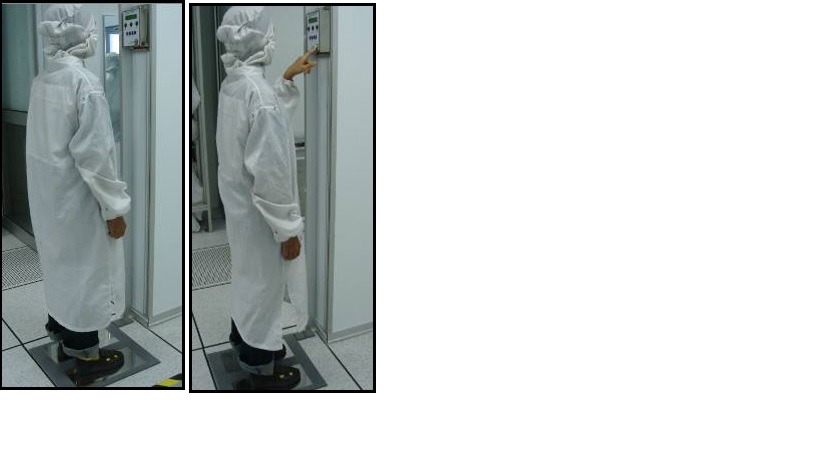

3. Steps to Use iDS-610

3.1 Step on the Footplate firmly

3.2 Plug in the Wrist Strap Jack (if required)

3.3 Press the Steel Button on the ESD Tester to initiate testing

3.4 If Result pass, the Door will opens or the

Turnstile will start to rotate to allow access

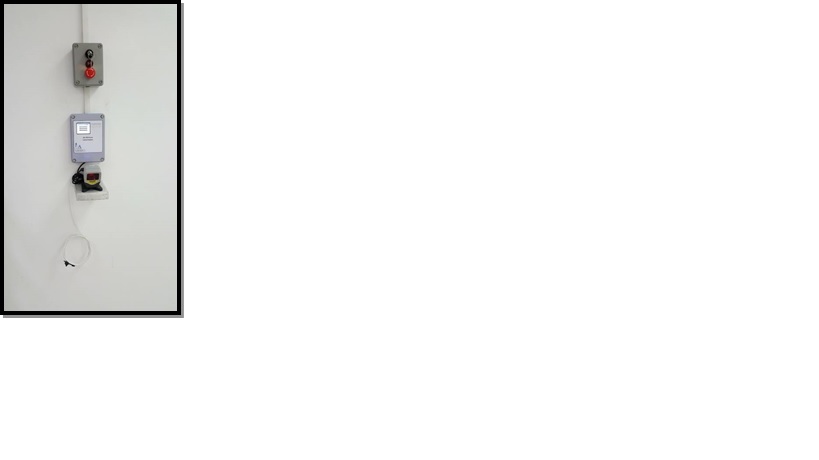

4. Connecting iDS-610 to Entrance Doors

4.1 Connection to Door

4.2 Key Benefit

Easy to Install Economical

4.3 Disadvantage

Many operators can enter at the same time.

5. Enhancement to DS-600 Door Access System

5.1 Sensors and Siren to be installed at entrances to ensure ONLY the person who

is verified of ESD compliant is allowed to enter production floor/ESD Protected Area

In order to provide more ESD security for the Production Floor/ESD Protected Area

6.Connecting DS-600 to Gate Barrier

6.1 Advantages

- Go-No-Go System

- Minimum Paper Work

- Minimum Maintenance

6.2 Disadvantages

- Higher Cost

- Takes up space

7. Various Types of ESD Gate Barrier

7.1 Flap Gate

Futuristic and very presentable to customer

Impressive

7.2 FlapGate with Dual Flap

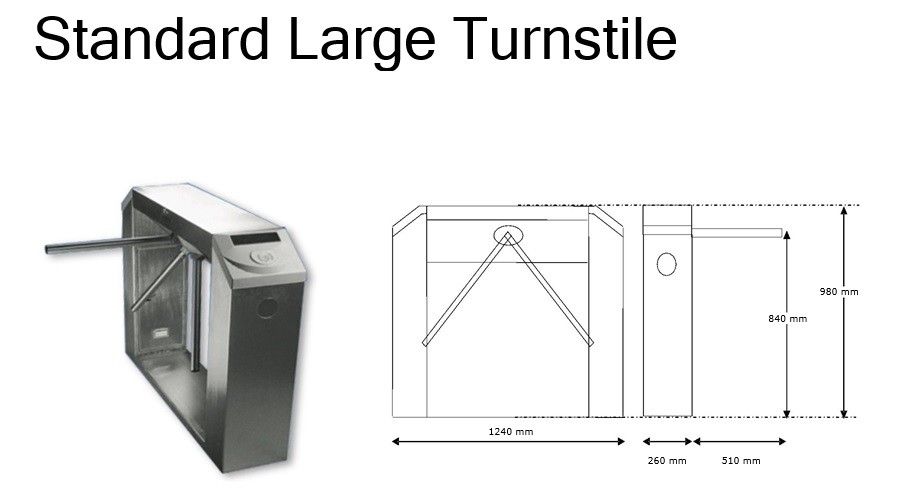

7.3 Standard Large Turnstile

7.4 Standard Large Turnstile Dimension

7.5 Compact Turnstile

8.Implementation

9. Wall Mounted Units

9.1 Self-contained ESD System with Computer and Web-based Reporting

*** Does not require additional

Computer/Server

9.2 Comes with OMNI Barcode Scanner

9.3 2.8” LCD

9.4 Mounting Panel for Testing

9.5 Integrated to iDS-610 ESD Tester

1> 100kOhm to 150MOhm Testing range

2> Dual Footplate

3> Wrist Strap

 SHENZHEN DELIXIN CO.,LTD is a specialized enterprise which integrates development，Manufacture，Marketing，and professional services of the anti-static package material and access control system and the related equipment.

Our headquarter locates in the Singapore. We have some different branch companyes in Malaysia, Indonesia, Thailand and so on. It integrates design, production, fabrication, service as whole.


Since its founded，Our company has always adhered to the business principle “Quality is first，Customer is supreme”，We aim to become the first in the world and the world-known hi-tech enterprise.

With the continuous upgrading of the product，Product performance has been far higher than the trades main rival，Meanwhile.We are having originality in various fields now.

Besides Chinese market．Our product export to Southeast Asia.The Middle East，Europe and The United States market，The product gains friends general from all walks of life.

We manufacture the below products in different branch factory for over many years.
The first factory produce Carrier tape, plastic reel, cover tape. It includes PS，PET,PC carrier tape and SMT carrier tape, all kinds of reel and cover tape.
The second factory produce the PS/PVC/PET/PC/PP vacuum tray forming products.
The third factory manufacture the extrusion products, including PVC、PP、PS、PET,PC ,Acrylic plastic sheet, IC tube, conductive tiles and the PVC table mat and rubber mat so on
The fourth factory produce ESD small stationery products, ESD PEN, ESD document holder, ESD badge holder, ESD clip, ESD glove, non-woven face mask, CPE shoe cover, mob cap, and so on.
The fifth factory produce turnstile with ESD tester, Resistance meter box., wrist strap monitor and so on.
We dedicate ourselves to offer the world with our quality products and excellent services at very competitive prices. With our continuous effort, we have exported many of the best-quality products to all over the world.
