Factory Directly Grey Card Paper Smd Carrier Tape Reel Plastic Reel Spool Cover Tape For SMD SMT Packing
Carrier tape
8-104mm PS&PET&PC material,with conductive(antistatic)and non-conductive(non-antistatic) type.
Color:black/transparent
There are many existing molds for conventional universal components,and we can design carrier tapes according to customers’ components samples,which are with accurate dimensions and meet the requirement of EIA-481.
We can machine-shaping different types of carrier tapes,with ordinary type and antistatic type .We can also design molds according a quite mature stage through years’ accumulation.Now the quality of our products can absolutely meet customers’ requirements,and are widely used in different areas such as inductor,connector,IC,resistor,capacitor,swithc,fuse,transformer,screening can,LED and other SMD components.
Cover tape
Environment-friendly antistatic material,including self-adhesion type and heat-sealing type.Self-adhesion type with two colors:transparent and tawny,heat-sealing type with other two colors:transparent and semi-transparent(spay),following is the matching table of cover tape and carrier tape:
| Carrier tape (MM) | 8 | 12 | 16 | 24 | 32 | 44 | 56 | 72 | 88 |
| Cover Tape(MM) | 5.4 | 9.3 | 13.3 | 21.3 | 25.5 | 37.5 | 49.5 | 65.5 | 81.5 |

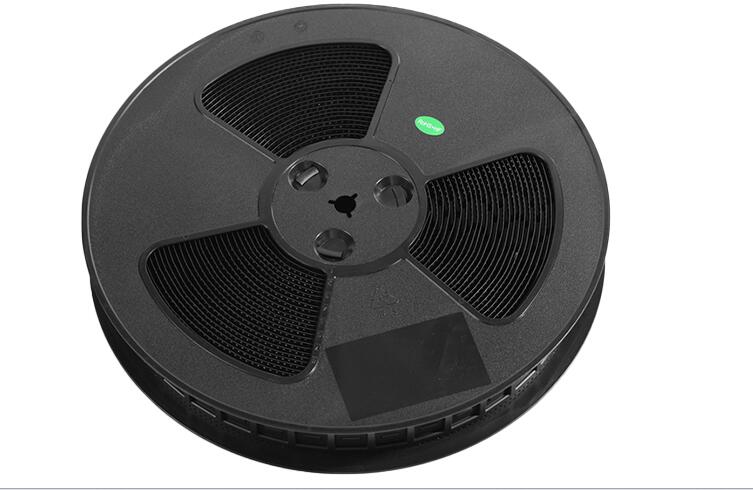

Plastic reel
Environment-friendly PS anti-static materials,blue /black/white
Size:the diameter of disk,178mm,330mm,380mm,the diameter of axis:60mm,100mm,150mm,180mm,Width:8mm-72mm,and can be mixed according to requirement.
|
|
