| Brand Name : | ACE DELIXIN |
| Model Number : | ACE1000.300.1000 |
| Certification : | CE |
| Price : | Negotiable |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability : | 3000 sets per month |

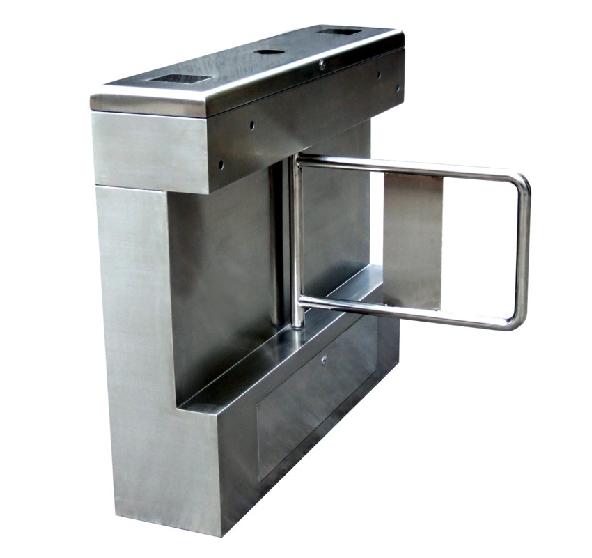

AC220V 50HZ Drop Arm Turnstile Comapct Safety With Automatic Lock Function
I. Swing / passage turnstile( Barrier) specification
1) Two directions controlled/one direction controlled
2) LED direction indicator
3) Flow Speed:
4) 50 people/minute in the opening mode
5) 30 people/minute in the closing mode
6) Illegal invasion sound alarm
7) Anti-strike function
8) Keep open/close status if the power supply fails
9) RS485 interface
10) Pulse voltage signal, more than 100ms
11) Passageway: ≤700mm
12) Power: AC220V, 50Hz
13) Operating environment: Temperature :-20℃ to 80℃
RH ≤90%
14) Dimensions: 1, 200 x 280 x 1, 000mm
15) Can connect various access controllers such as IC/ID reader/writer, button controller, barcode controller, code controller, fingerprint controller, or computer.
II. iDS-610 – ESD Wrist Strap and Shoe Tester
III. ID or IC reader
1. Specification:
ID CARD
Frequency:13.56KHz
DIM:Length85.6mm × Width53.98mm × Thickness1.8mm
Material:Hard Shell = ABS；Cover Foil = PVC
Color:White , black, grey, blue, yellow
Power requirements: 5-16VDC at 100mA, A linear regulator is recommended
Interface: Weigand
Reader range: 5 - 10 cm
Operation temperature: -30 C to +60 C
operationg humidity: 5%-95% relative humidity non-condensing
Audio/Visual Indication: Green & Red and Buzzer signal output
Response Time: Less than 0.2 seconds
cable length: 250mm
Weight: 60g
2. Wiring :
Red: Power 5-16V
Black: Power ground
Green: Wiegand output D0
White: Wiegand output D1
Brown: Green LED control
Blue: Buzzer control
Yellow: Hold
LED/Buzzer function description
LED function: The LED color is normally in RED. It starts with 2 green flashes on power up the reader and remains RED. When a RFID proximity card is present to the reader, The LED will momentary flash green,this indicates that the card was read properly by the reader. When the LED control signal is active, the LED changes to green.
Beeper Function: Power up the reader, the beeper will active 2 times. When a RFID proximity card is present to the reader, a short beep will be emitter. This indicates that the card was read properly by the reader. When the Buzzer control signal is active, the buzzer will sound till buzzer control line is released
Hold function: when this line is asserted,(made low by HOST) the reader will buffer one card read (ignoring subsequent reads) until the line is released.(made high or open)
IV. Data Logging System D-Stat 700
D-Stat 700 Wrist Strap/Foot wear Datalogging System
Specification
Datalogger is connected to a PC via RS-232 or TCPIP
1>. Tester is able to test left and right footwear
simultaneously.
2>. Tester is ready to test for 5 seconds after swiping card
reader.
3>. Software to plot graph or report as specified.
4>. Software is customized according to users requirement.
5>. System to pull operators database from server.
6>. E-mail notification if operator fail test.
7>. Graph and report can be viewed by authorized workstation.
4. D-Stat 700 Wrist Strap/Footwear
Datalogging System
D-Stat 700 datalogging system is a self-contained and user
friendly system that provides the ultimate means to automate
the test data of the wrist strap and/or footwear.
The basic system consists of :
- Wrist strap and footwear tester
- D-Stat 700 Datalogging
- Ds-Reader
- Ds-Scheduler
- Ds-Reporting
- Ds-Fail Reporting
- Dual Conductor Footplate
- Barcode Reader/Smart Card Reader
- Computer
|
|
